Hang this poster where you weld, cut or braze, so the right lens is chosen before the arc is struck. It puts the US minimum filter shades on one page, with a bold reminder never to go lighter than the minimum.

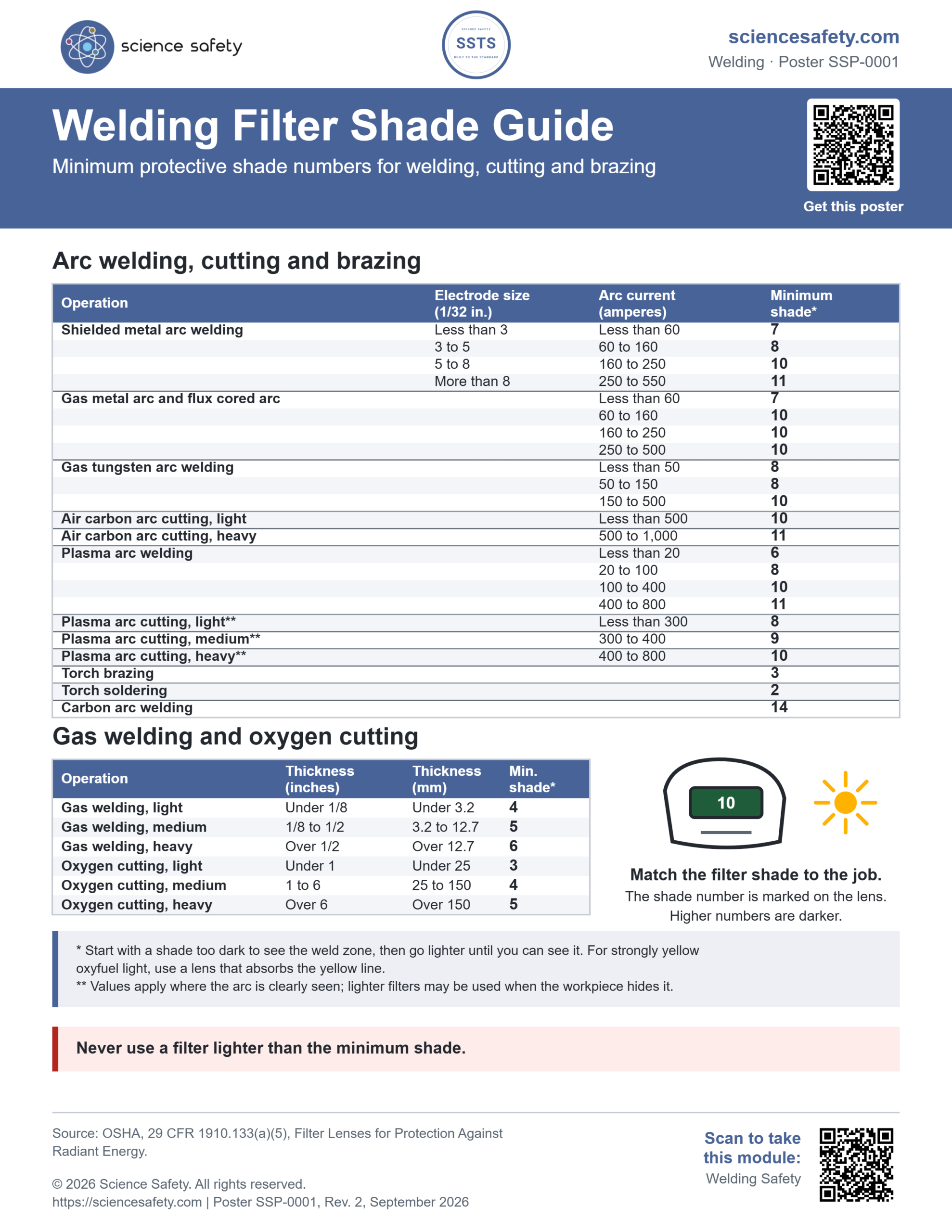

What is on the poster
Arc welding, cutting and brazing
| Operation | Electrode size (1/32 in.) | Arc current (amperes) | Minimum shade* |
|---|---|---|---|
| Shielded metal arc welding | Less than 3 | Less than 60 | 7 |
| 3 to 5 | 60 to 160 | 8 | |
| 5 to 8 | 160 to 250 | 10 | |
| More than 8 | 250 to 550 | 11 | |
| Gas metal arc and flux cored arc | – | Less than 60 | 7 |
| – | 60 to 160 | 10 | |
| – | 160 to 250 | 10 | |
| – | 250 to 500 | 10 | |
| Gas tungsten arc welding | – | Less than 50 | 8 |
| – | 50 to 150 | 8 | |
| – | 150 to 500 | 10 | |
| Air carbon arc cutting, light | – | Less than 500 | 10 |
| Air carbon arc cutting, heavy | – | 500 to 1,000 | 11 |
| Plasma arc welding | – | Less than 20 | 6 |
| – | 20 to 100 | 8 | |
| – | 100 to 400 | 10 | |
| – | 400 to 800 | 11 | |
| Plasma arc cutting, light** | – | Less than 300 | 8 |
| Plasma arc cutting, medium** | – | 300 to 400 | 9 |
| Plasma arc cutting, heavy** | – | 400 to 800 | 10 |
| Torch brazing | – | – | 3 |
| Torch soldering | – | – | 2 |
| Carbon arc welding | – | – | 14 |
Gas welding and oxygen cutting
| Operation | Plate thickness (inches) | Plate thickness (mm) | Minimum shade* |
|---|---|---|---|
| Gas welding, light | Under 1/8 | Under 3.2 | 4 |
| Gas welding, medium | 1/8 to 1/2 | 3.2 to 12.7 | 5 |
| Gas welding, heavy | Over 1/2 | Over 12.7 | 6 |
| Oxygen cutting, light | Under 1 | Under 25 | 3 |
| Oxygen cutting, medium | 1 to 6 | 25 to 150 | 4 |
| Oxygen cutting, heavy | Over 6 | Over 150 | 5 |
* Start with a shade too dark to see the weld zone, then go lighter until you can see it. For strongly yellow oxyfuel light, use a lens that absorbs the yellow line.
** Values apply where the arc is clearly seen; lighter filters may be used when the workpiece hides it.
Never use a filter lighter than the minimum shade.
